Product Description

SPEED PRO PISTONS

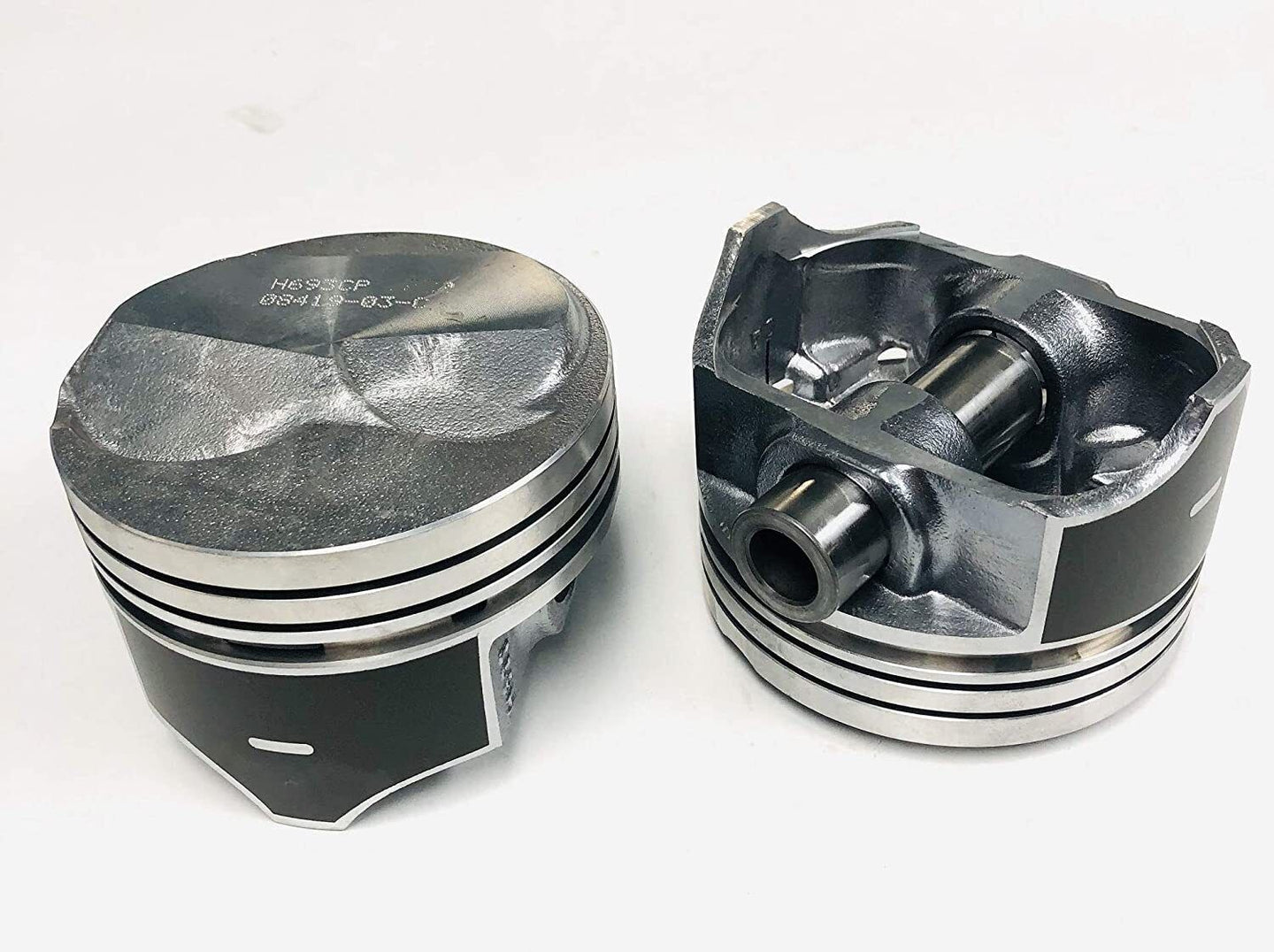

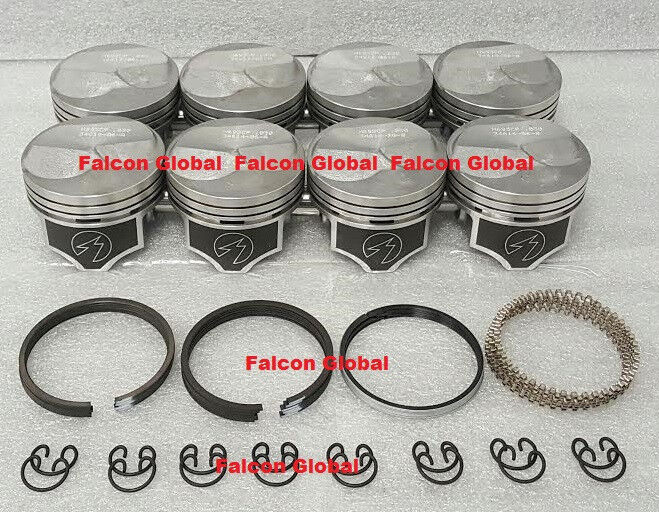

This item is for eight (8) .040 over bore Speed Pro (Sealed Power) hypereutectic 22cc dome pistons and a moly piston ring set (Hastings/MAHLE) for Chevrolet 454ci (7.4L) big block V-8 engines. P/N (8) H693CP-040 + 2M683-040. These pistons are Speed Pro's hypereutectic version of the 1970 LS6 pistons.

If you're looking for pistons with an unbeatable combination of performance and value, then Speed-Pro hypereutectic pistons are for you. These pistons are manufactured from aluminum alloy that contains 16 percent silicon for greater strength and wear resistance. They're also molded in the latest permanent-mold technology to ensure the precise fit and tight bore clearances that today's top engine builders demand. Hypereutectic pistons are ideal for use in high performance street, bracket, and oval track racing—and will work perfectly with normal ring end gaps.

PISTON SPECIFICATIONS

  • Bore: 4.290 in. (at .040 bore)
  • Stroke: 4.000 in. (stock)
  • Connecting Rod Length: 6.135 in. (stock); rods NOT included
  • Piston Top Style: Dome top with 2-valve reliefs
  • Piston Head Volume: -22.00cc
  • Dome Height: .230 in.
  • Compression Height: 1.640 in.
  • Piston Material: Hypereutectic aluminum
  • Wrist Pin Diameter: .989 in.; pins included
  • Wrist Pin Style: Press-fit or floating; pin clips included
  • Ring Land Sizes: 5/64-5/64-3/16 (oil ring); rings included
  • Notes: DurOshield coated skirts
  • Usage: Street and mild strip; up to 75HP nitrous
  • RPM Range: Idle - 6,000
  • Compression Ratio (approximate): 10.4:1 w/106.9cc; 9.5:1 w/116.9cc; 9.4:1 w/119cc
